2020

SUSTAINABLE MICRO HOUSING

SEED ARK



Seeds, by their very nature, are full of potential to adapt to different environments. Grabbing this concept, trying to utilize the full potential of the relatively compact space is the main aim of this project. The Seed Ark will be a 90% local timber prefabricated construction. It is a 35 sqm unit offering flexible space suitable for living and working. As a tiny total area has been provided, the overall outlook of Seed Ark will be an extremely introverted building; thus, the indoor space arrangement is following functions rather than focus on intimacy in between the space like normal.

Seed Ark is a nomad. It can be installed in a great variety of spaces, On top of that, the concept also believe that the flexible style of a construction process is also another way to present sustainability.

Temporary Location

Georgina island, 990 fox Rd.,Jacksons point, ON.

Following up the concept of the “portable building”, the reason for choosing the island which is in the centre of the Simcoe lake for the first site is because the aim of the design is: Seed Ark can also be easily adaptable even within an extreme environment.

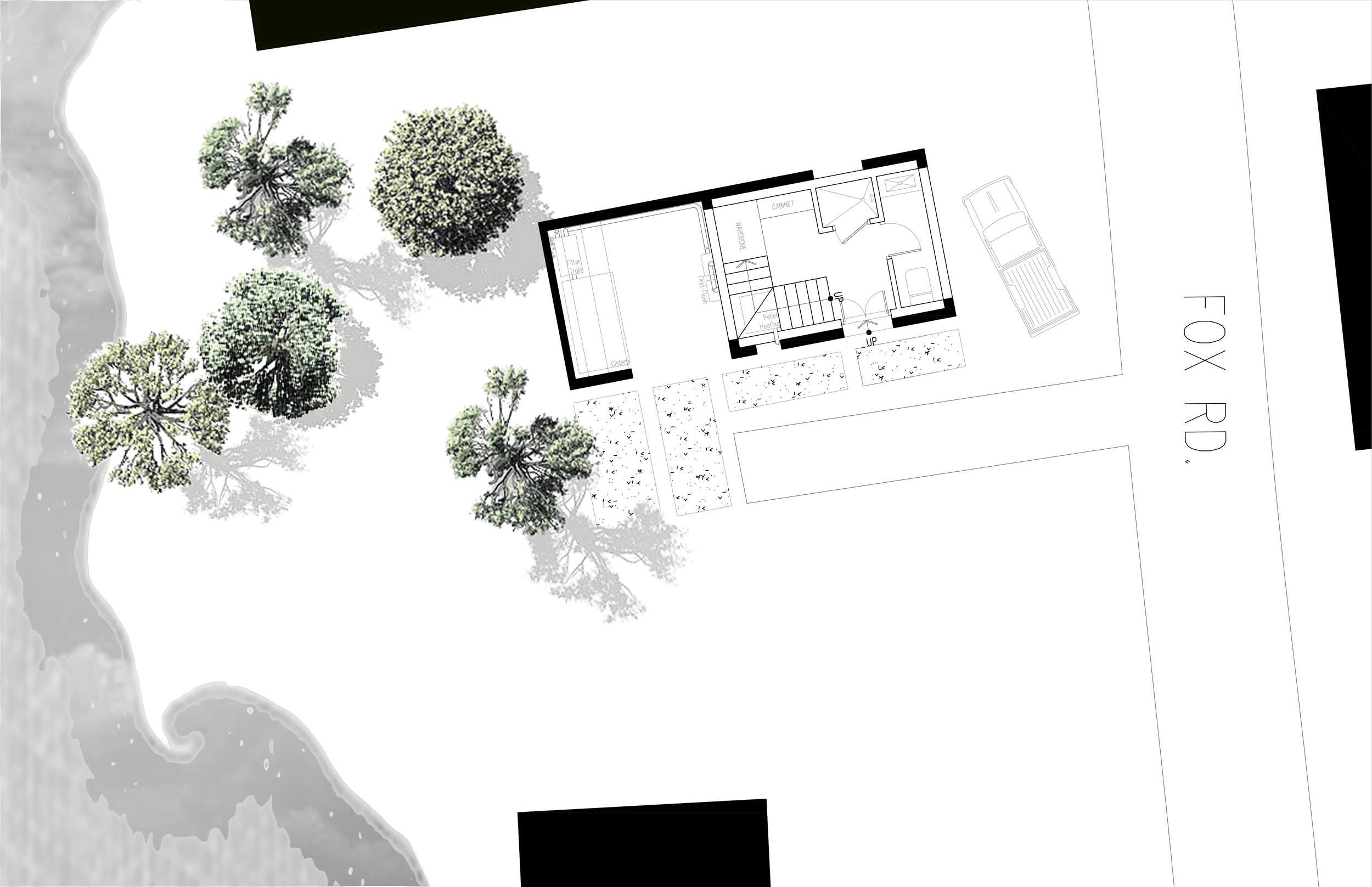

site plan.png
SUNLIGHT ANALYSIS

SUNLIGHT ANALYSIS

WIND ROSE CHART

WIND ROSE CHART

ELEVATION & MATERIAL EXPLANATION

ELEVATION & MATERIAL EXPLANATION

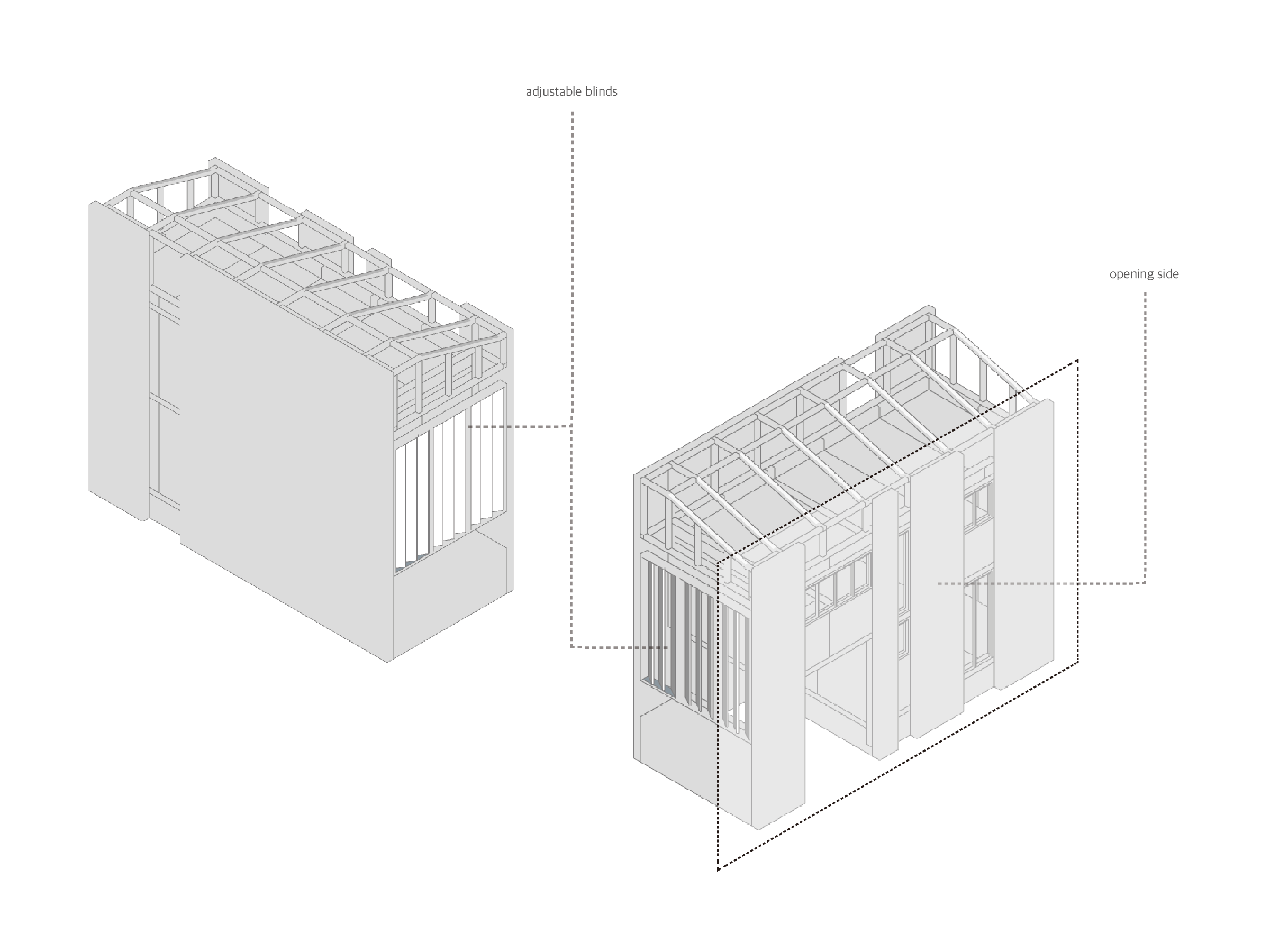

PASSIVE SOLAR DESIGN

PASSIVE SOLAR DESIGN

Adjustable blinds on EAST SIDE: tracing sunlight during the summer morning.

The opening position follows the sunlight direction research of the site: SOUTH SIDE can receives sunlight 8-17 even during heating season.

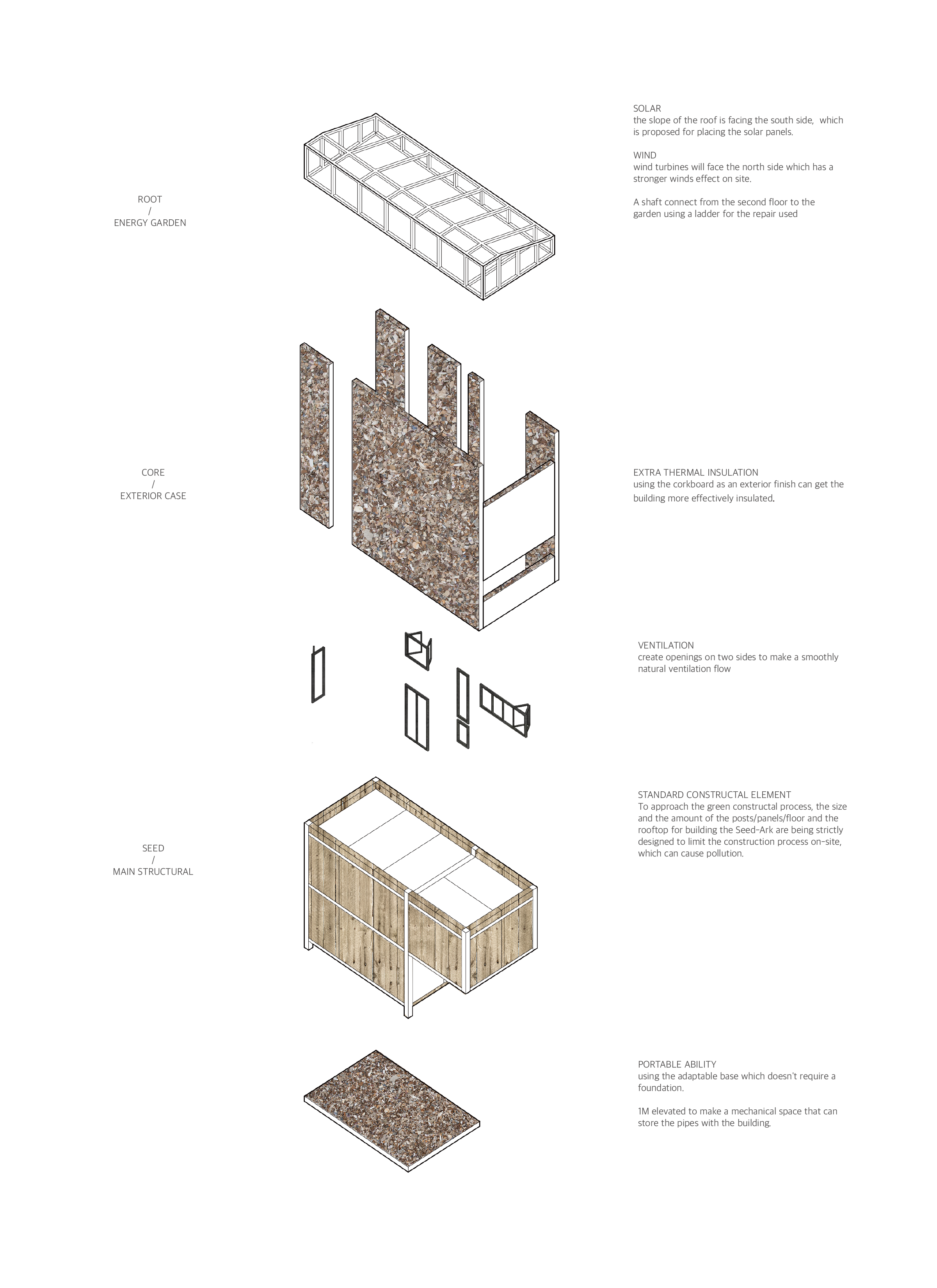

EXPLOED STRUCTURAL DIAGRAM

EXPLOED STRUCTURAL DIAGRAM

SECTION_工作區域 1.png

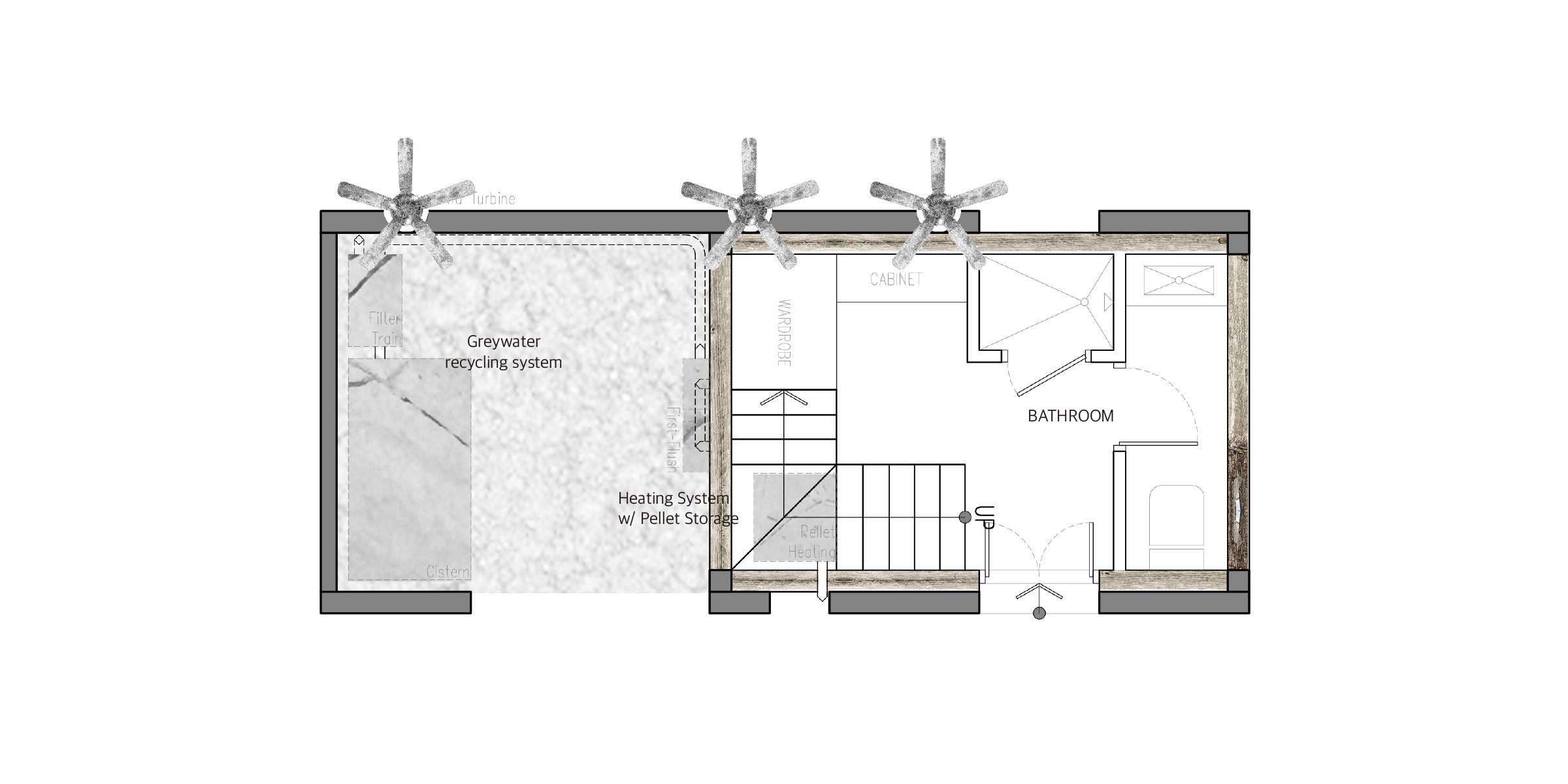

GROUND FLOOR FLOOR PLAN

GROUND FLOOR FLOOR PLAN

PELLET HEATING SYSTEMREF @Revelli HPB-160

PELLET HEATING SYSTEM

REF @Revelli HPB-160

GREY WATER RECYCLING SYSTEMREF @Aquawater GW-210

GREY WATER RECYCLING SYSTEM

REF @Aquawater GW-210

SECOND FLOOR FLOOR PLAN & ROOF PLAN

SECOND FLOOR FLOOR PLAN & ROOF PLAN

HYBRID ELECTRIC SYSTEMS w/ ENGINE GENERATOR

HYBRID ELECTRIC SYSTEMS w/ ENGINE GENERATOR
